Battery Nickel Strip: Core Conductive Component for New Energy Batteries

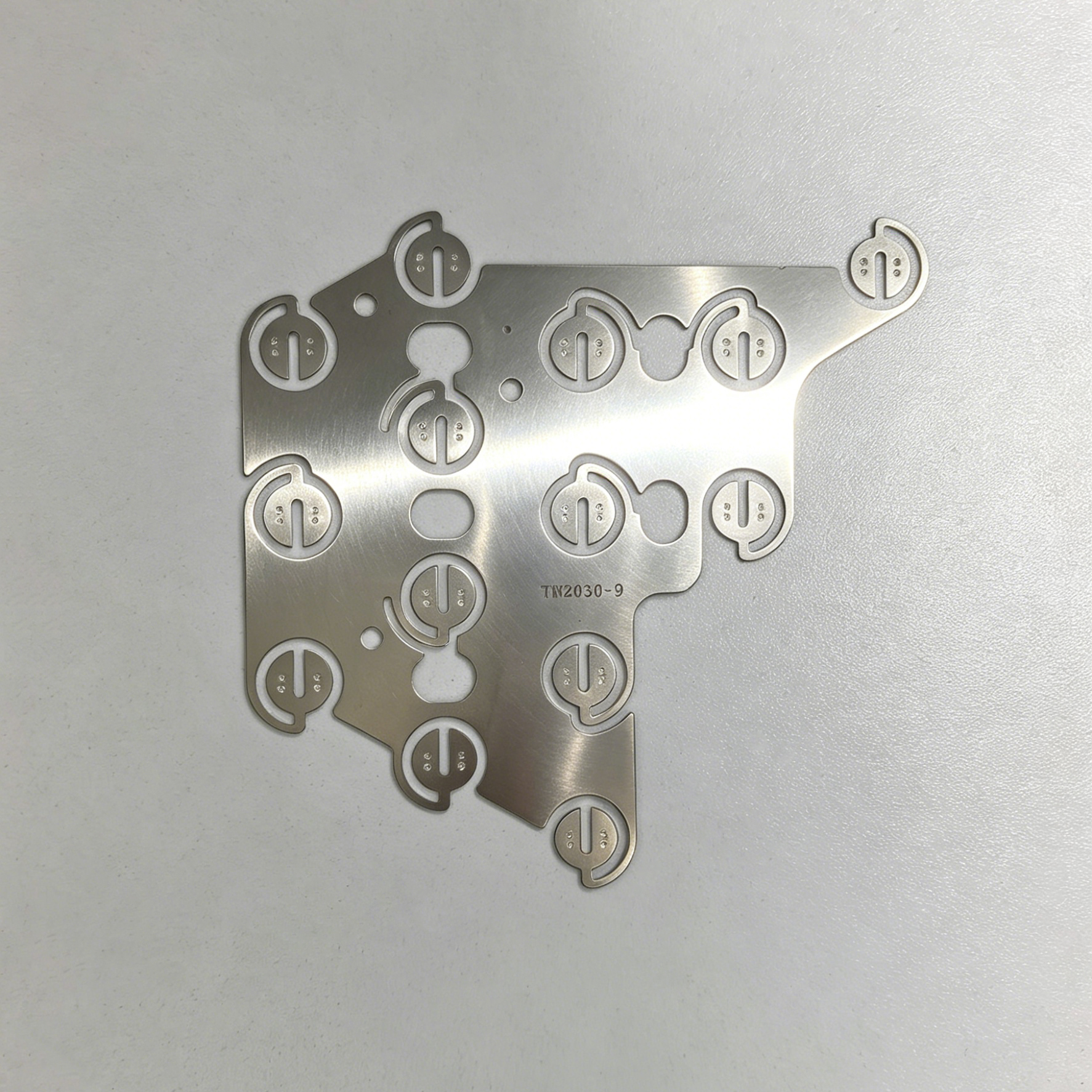

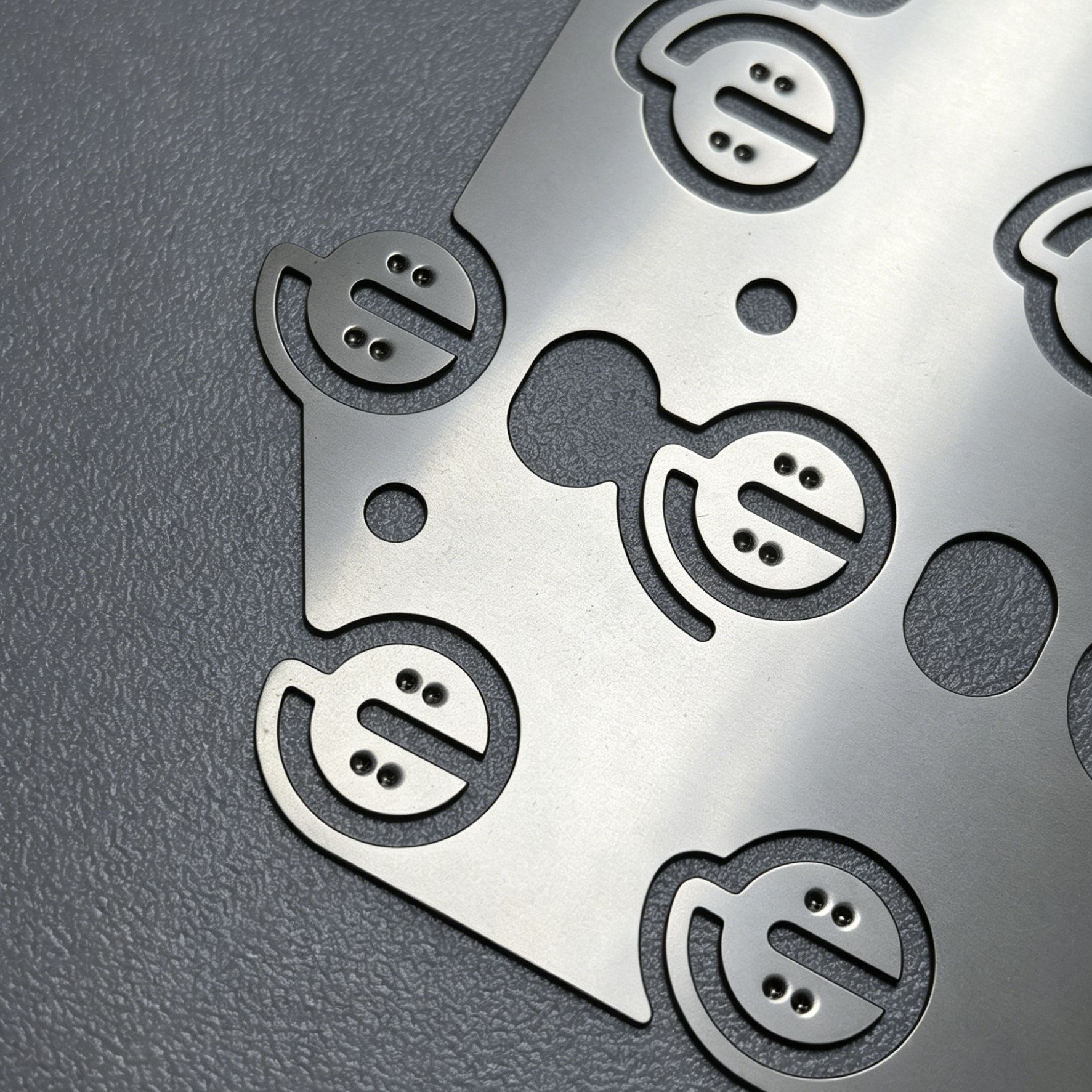

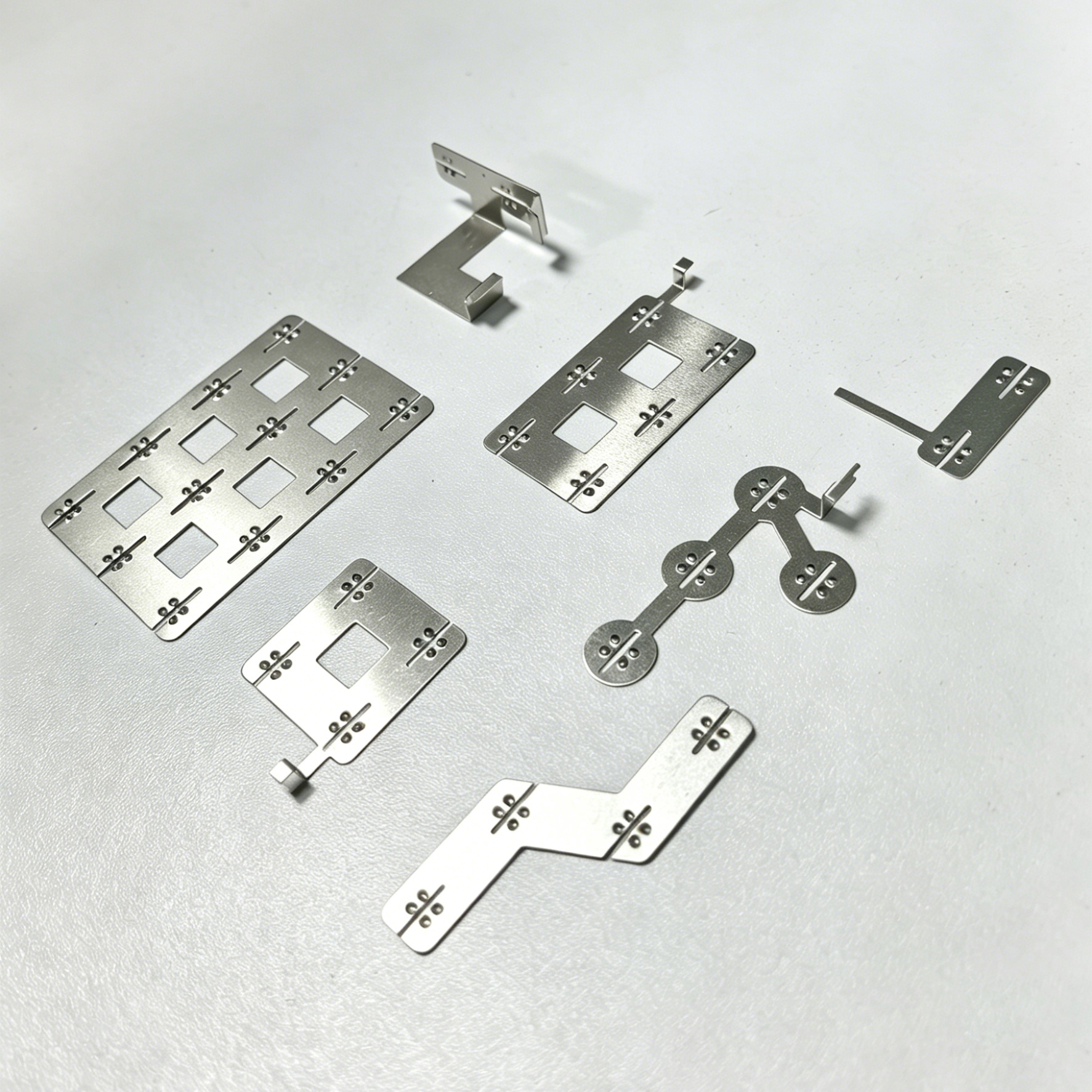

Battery nickel strips are thin strips or stamped parts made of high-purity nickel or nickel-based composite materials. They are primarily used to connect individual battery cells in series or parallel, conduct current and provide safety protection. Serving as both the conductive framework and safety fuse for lithium-ion and Ni-MH battery packs.

Main Materials & Selection Guide

Pure Nickel Series (Gold Standard for Battery Applications)

• N6 (99.6% purity): Features excellent spot welding performance, superior corrosion resistance and high electrical conductivity. Ideal for medical devices, industrial equipment and high-rate batteries.
• N4 (99.9% purity): Higher purity grade, designed for applications demanding ultra-high electrochemical stability.

General properties: Low magnetism, excellent ductility and good bending resistance, suitable for complex stamping structures.

Key Processes & Technical Specifications

Production Flow

Coil uncoiling → High-speed precision stamping (blanking, punching, bending) → Surface treatment (optional) → Cleaning → Slitting & Packaging → Full inspection

Application Scenarios & Target Customers

• Consumer Electronics: Used for batteries of mobile phones, laptops and power banks. Adopts 0.05-0.1mm nickel tabs and connecting strips.
• Power Batteries: Applied to new energy vehicles and power tools. Uses 0.15-0.3mm nickel-plated copper or pure nickel busbars. Products comply with IATF16949 certification requirements.
• Energy Storage Systems: For residential and commercial energy storage. Equipped with large-size nickel busbars and fuse protection structure.
• Medical Devices: N6 pure nickel strips are mandatory for portable medical instruments to ensure long-term stable performance.
• Industrial Equipment: Composite nickel strips with grounding function for AGVs and robot batteries.

BoSi specializes in manufacturing high-quality pure nickel strips for batteries. Feel free to contact us via private message for quotations if you have any demands.
